Detail produk:
|
| Bahan: | Inti Permalloy | Fitur: | permeabilitas tinggi |
|---|---|---|---|
| Struktur kumparan: | toroidal | Penggunaan: | Perlindungan, Pengukuran |
| Cahaya Tinggi: | 55mm inti trafo permalloy,inti trafo permalloy permeabilitas tinggi,trafo inti magnetik 55mm |
||

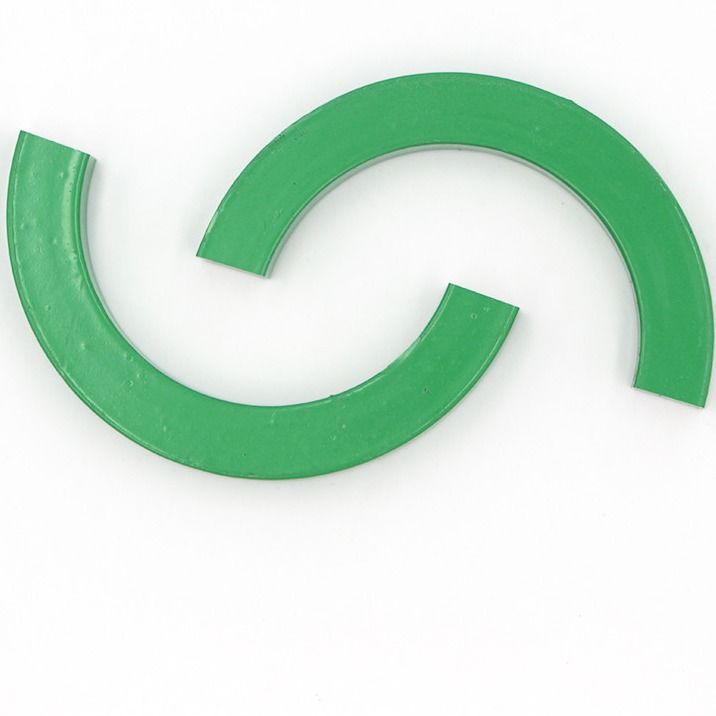

Inti Permalloy
1j85 fitur produk:
Ini memiliki permeabilitas awal yang tinggi atau sangat tinggi dan permeabilitas volume tinggi, koersivitas sangat rendah, dan induksi magnetik saturasi rendah.
Parameter
| Ukuran (mm) | Arus masukan (A) | Daya Keluaran (mW) |
| 55*65*5 | 10 | 13mW min |
| 55*75*10 | 5 | 38mW min |
| 55*75*12 | 5 | 45mW min |
| 48*68*15 | 5 | 50mW min |
| 55*75*20 | 3 | 45mW min |
parameter:
| UKURAN | Masukan Arus | rasio putaran | Beban kerja | Voltase | Daya Keluaran |
| 55*65*5mm | 10A | 900T | 1K | 3.7V | 13mW |
| 55*75*10mm | 5A | 400T | 400 | 3.9V | 38mW |
| 54*78*12mm | 5A | 500T | 1K | 7V | 49mW |
| 67*47*15mm | 5A | 400T | 750Ω | 6V | 48mW |
| 55*75*20mm | 3A | 250T | 500Ω | 4.3V | 36mW |
| 95*75*20mm | 3A 5A | 250T | 400Ω 300Ω | 3.4V 4.5V | 28mW 67mW |
| 85*55*25mm | 3A 5A | 250T | 600Ω 500Ω | 5.4V 7.6V | 48mW 115mW |
| 88*67*10mm | 5A | 400T | 500Ω | 4.5V | 40mW |
| 72*47*27mm | 3A 5A | 250T | 600Ω 500Ω | 5.6V 7.7V | 52mW 118mW |
| 63*50*12mm | 5A | 400T | 300 | 2.9V | 28mW |
| 58*42*8mm | 5A | 400T | 300 | 2.7V | 24mW |
| 58*45*20mm | 5A | 400T | 300 | 5.3V | 46mW |
| 50*35*15mm | 5A | 400T | 400 | 3.7V | 34mW |
| 48*38*10mm | 5A | 900T | 1K | 4.7V | 22mW |
| 43*33*6mm | 5A | 900T | 600Ω | 2.6V | 11mW |
| 40*25*15mm | 5A | 400T | 500Ω | 5V | 50mW |
| 43*33*9mm | 5A | 900T | 1K | 4.5V | 20mW |
